Full Auto Energy Saving Roll To Roll Vacuum Coating Equipment with Custom Made Vacuum Chamber

Full Auto Energy Saving Roll To Roll Vacuum Coating Equipment with Custom Made Vacuum Chamber

Full Auto Energy Saving Roll To Roll Vacuum Coating Equipment with Custom Made Vacuum Chamber
Full Auto Energy Saving Roll To Roll Vacuum Coating Equipment with Custom Made Vacuum Chamber
Full Auto Energy Saving Roll To Roll Vacuum Coating Equipment with Custom Made Vacuum Chamber
Dettagli:
Luogo di origine: Cina
Marca: JXS
Certificazione: CE
Termini di pagamento e spedizione:
Quantità di ordine minimo: 1 insieme
Prezzo: negotiable
Imballaggi particolari: Custodia in legno, pellicola di plastica
Tempi di consegna: 60 giorni lavorativi
Termini di pagamento: T/T, L/C
Capacità di alimentazione: 100 set/anno
Contatto
Descrizione di prodotto dettagliata
Sistema di controllo: Completamente automatico Tipo di macchina: Attrezzature di rivestimento
Substrati: metallo, vetro, ceramica, PVC ecc. Colore del rivestimento: Oro, argento, oro rosa, ecc.
Posizione: FOSHAN Marca della pompa: JXS
Garanzia: 1 anno

Continuous Roll To Roll Vacuum Coating Equipment For Food Packaging Material
This advanced industrial PVD coating machine applies thin, durable films onto various substrates including metals, ceramics, and plastics. Featuring energy-saving capabilities, it's specifically designed for decorative products, enhancing both appearance and performance.
Product Overview
A PVD coating machine is a sophisticated device used to apply thin, durable coatings onto various substrates through the process of Physical Vapor Deposition. The core principle involves vaporizing a solid target material within a vacuum chamber. This is typically achieved using methods such as sputtering, where high-energy ions bombard the target, or evaporation, where the target is heated by an electron beam or electric arc. The vaporized material then travels through the vacuum and condenses as a thin, uniform film onto the prepared surfaces of the workpiece.
This technology is renowned for producing coatings with exceptional hardness, wear resistance, corrosion protection, and decorative finishes. Common coatings include titanium nitride (gold), chromium nitride (silver), and various diamond-like carbon layers. These coatings are pivotal across multiple industries. They enhance the longevity and performance of cutting tools, molds, and automotive components. In the consumer sector, PVD is widely used for applying scratch-resistant and tarnish-free finishes on watches, jewelry, and architectural hardware.
The operation requires a controlled environment. The chamber is evacuated to a high vacuum to ensure a clean deposition path. The substrate is often cleaned and may be heated or biased with a voltage to improve adhesion and film quality. Modern PVD systems are highly automated, allowing for precise control over coating thickness, composition, and structure. This results in consistent, high-quality finishes that significantly improve product functionality and aesthetics, making PVD a cornerstone of advanced surface engineering.
Technical Specifications
Component Specification
Bias Power Supply 1 Set
Rotation Stand 1 Set
Heating System 1 Set
Structure Vertical Front Loading Or Vertical Loading
Vacuum Chamber Material Stainless Steel
Vacuum Chamber Inner Size Custom Made
Benefits After PVD Coating
  • Stainless steel hardware displays decorative colors for enhanced visual appeal
  • Strong adhesion film ensures longer service life
  • Coated products achieve higher market value
Product Images

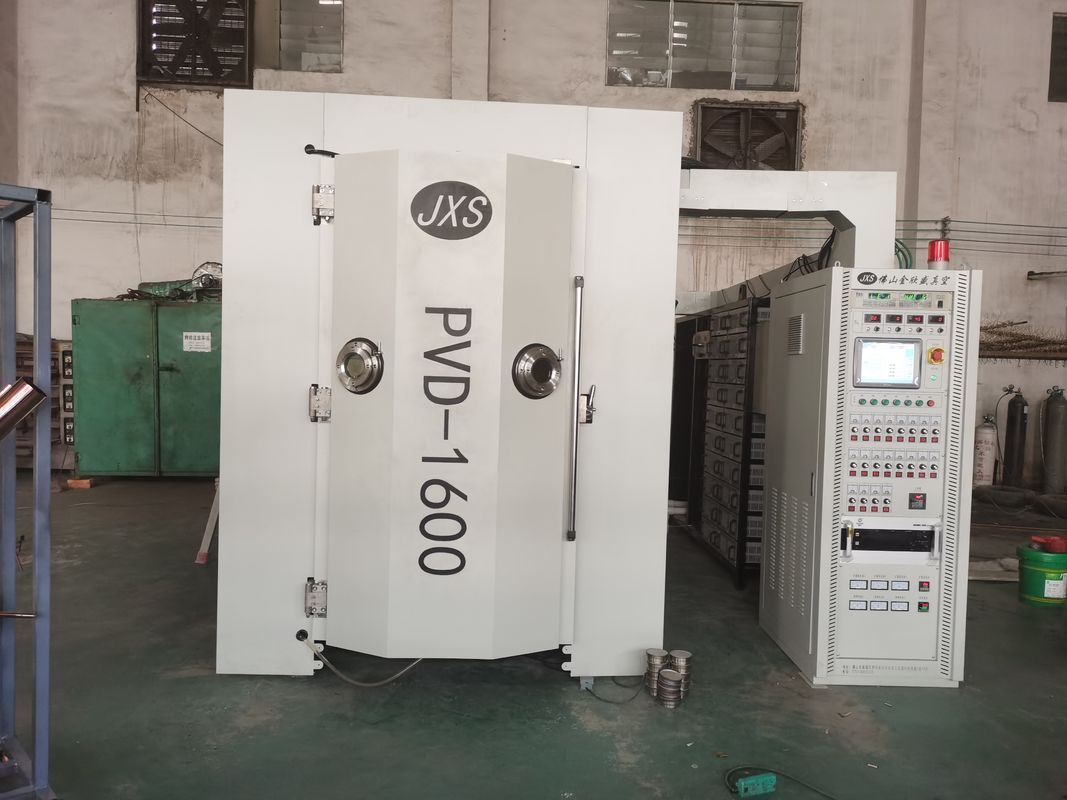

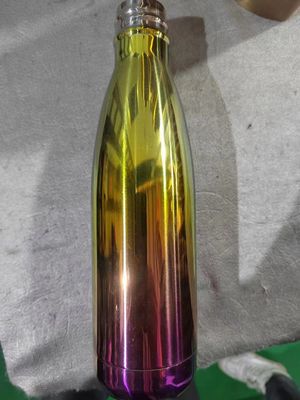

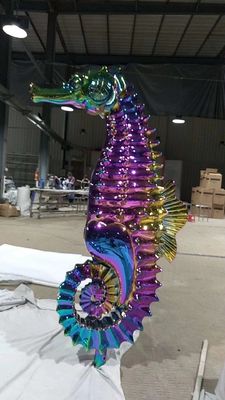

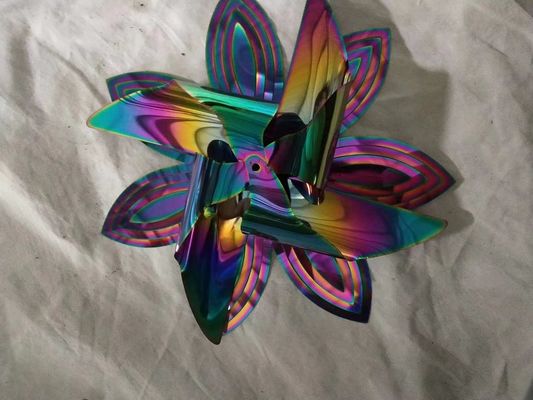

Full Auto Energy Saving Roll To Roll Vacuum Coating Equipment with Custom Made Vacuum Chamber 0 Full Auto Energy Saving Roll To Roll Vacuum Coating Equipment with Custom Made Vacuum Chamber 1 Full Auto Energy Saving Roll To Roll Vacuum Coating Equipment with Custom Made Vacuum Chamber 2
Frequently Asked Questions
How about your company?
We are a leading manufacturer and provider of total integrated supply chain solutions for vacuum coating machines.
How about the quality control about your products?
We maintain ISO9001 Quality Management System certification for comprehensive quality control.
Do you provide after-sales service?
After-sales problems are resolved online within 48 hours, with long-term product solutions and remote technical support provided.
What about the payment terms?
T/T (Telegraphic Transfer) is standard, with flexibility according to different machine types.
About the packaging?
Nude packing or wooden case carton container options are available.
Do you provide second-hand machines?
Yes, we provide second-hand machines. Please provide your requirements to our sales team.
